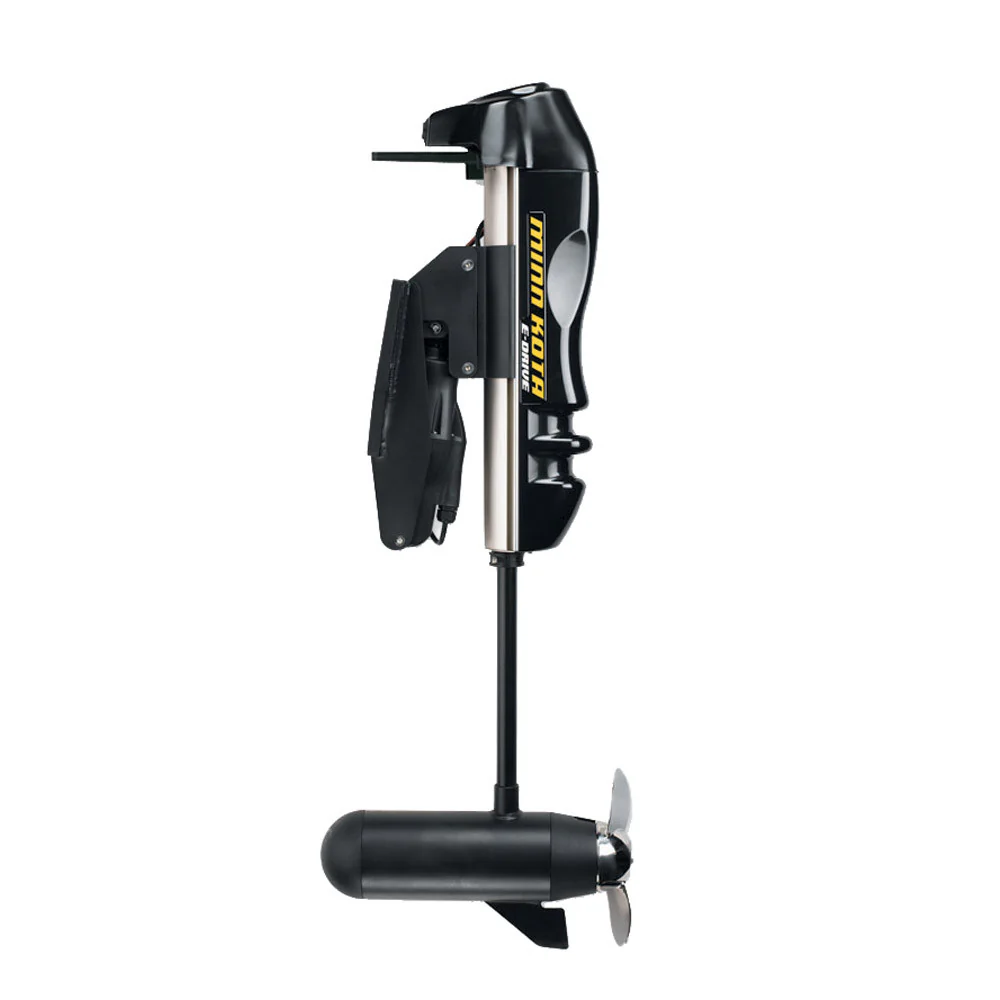

Minn Kota E-Drive Electric Outboard
Split
Recommended for:
Pontoon owners on electric-only lakes or those who want powerful, but quiet, non-gas propulsion. E-Drive's 2hp motor can move a full-size pontoon up to 5mph.
How It's Unique
This is the ultimate motor for pontoon owners who want to enjoy their lakes or waterways without the noise, fumes or emissions of a gasoline-powered outboard engine. E-Drive connects with your boat's standard cable steering system and features its own electronic throttle control that mounts easily in your cockpit and enables forward/neutral/reverse positions. The throttle control unit also features a realtime digital battery gauge with remaining runtime, as well as a tilt up/down push button. Ships with a stainless steel prop and special shear pin to protect your motor from any damage.
Water Type:
Freshwater Only
Shaft Length(s):
20"
Motor Features:
Electronic Throttle Control, Realtime Digital Battery Gauge, Dash-mounted Tilt Gauge, Stainless Steel Prop, Digital Maximizer, Tilt Lock for Trailering.
Available Upgrades:
No
Split
Mounting Details:
E-Drive features a bolt-on transom bracket. The bracket includes a power tilt mechanism and a built-in breakaway mount that protects the motor from underwater hazards.
Mount Dimensions:
5" high x 8 1/2" wide
Bolting Pattern:
Wiring Details:
E-Drive can be wired directly to the batteries. To protect your motor from damage, a circuit breaker is also recommended but is not required for installation.
Motor Voltage and Batteries:
E-Drive is a 48 volt motor and requires (4) 12-volt marine batteries. For more information, see our articles on battery selection or battery wiring diagrams.
Power Lead Length:
5'
Pedal Cord Length:
No
What Is Included:
- E-Drive Motor and bolt-on transom bracket
- Power leads
- Mounting hardware
- Owners manual
What Else Is Required:
4 Marine Batteries, Battery Charger, Circuit Breaker (Recommended)
Split
Amperage Draw:
No
Motor Run Time:
Important Note: As you likely won't be running your trolling motor perpetually, the actual amount of on-the-water time a motor should allow will be substantially longer than times listed. Actual motor run time can vary depending on conditions (winds, waves, etc) and the type of battery used. Listed below are run-time estimates assuming a 100 amp hour rated battery. To learn more, please see our article on calculating motor run time.
- 2 Hours at 100%
Stow and Deploy Method:
Minn Kota Actuator for full tilt up and down.
Motor Steering Method:
Links directly to your boat's standard cable steering mechanism.
Shaft Adjustment:
No
Motor Speed:
Electronic Throttle Control
Split
Owners Manual:
Warranty Period:
Two Years
Warranty Details:
Standard two year Minn Kota warranty
Box Dimensions:
Model 1371010 - 14"H x 22"W x 56"L WT: 100lbs
